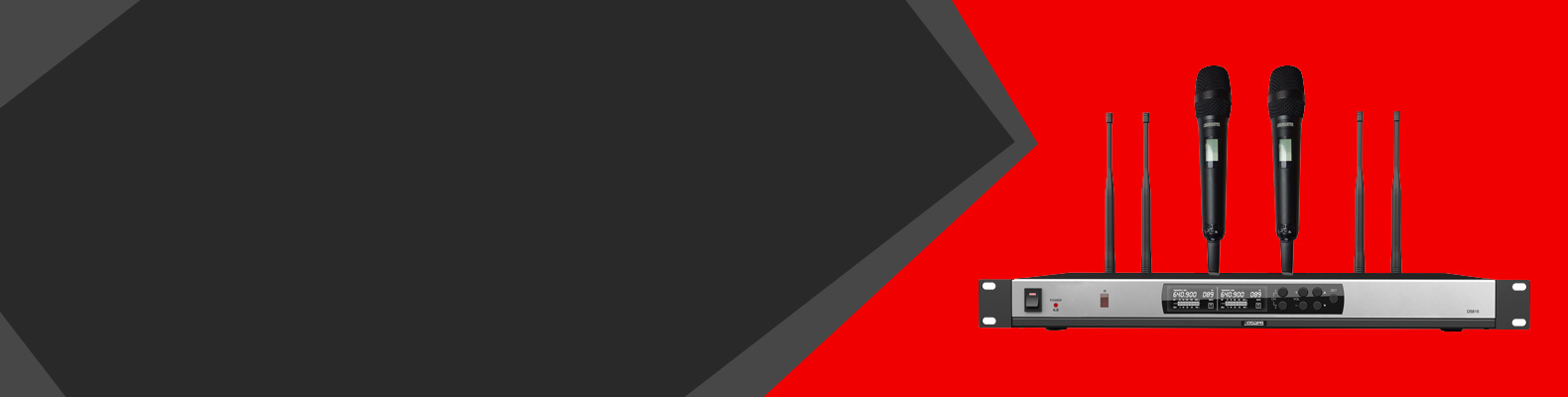

DSPPA D5821 Dual Wireless Handheld Microphone System
DSPPA D5821 Dual Wireless Handheld Microphone System
This is a professional true diversity wireless microphone system. MAG6552 is the wireless microphone receiver, which can be combined with MAG6553 and D5811 handheld wireless microphones to form a wireless microphone system.
Call for Best Price
Specifications - DSPPA D5821 Dual Wireless Handheld Microphone System
System Index
Parameters
Frequency Range
632-661.25MHz
Number of Channels
100
Stepped Frequency
250KHz
Frequency Stability
Within ±0.005%
Dynamic Range
88dB
Maximum Frequency Deviation
±48KHz
Audio Frequency Response
125Hz-15KHz(±3dB)
SNR
>70dB
Distortion
≤1 %
Working Temperature
-10℃-+40℃
Effective Range
150-300m (in open environment)
Package Dimensions (L×W×H)
530×335×330mm
MAG6551 Gross Weight
5.3kg
Receiver
Wireless Interface
BNC/50Ω
Sensitivity
-100dBm
Spur Suppression
≥75 dB
Function Display Method
Display Screen
Working Power
DC12V, 600mA
Package Dimensions (L×W×H)
530×335×100mm
Machine Dimensions
430×176×44mm
Gross Weight
3.9kg
Net Weight
2.3kg
Transmitter
Antenna Method
1/4 wave whip antenna for the waistband transmitter, and built-in onboard antenna for the handheld microphone.
Output Power
High power 14dBm; low power 6dBm
Spur Suppression
-60dB
Power Supply
2 AA 1.5V alkaline batteries
Endurance
More than 10 hours at 14dBm; more than 15 hours at 6dBm.
