| PRODUCT NAME |
EB-992F |
| PRODUCT CODE |
V11H988053 |
| TECHNOLOGY |
|
| Projection System |
3LCD |
| LCD Panel |
0.61-inch |
| IMAGE |
|
| Light Source |
Lamp |
| Resolution |
Full HD |
| Colour Light Output |
4,000 Lumens |
| White Light Output |
4,000 Lumens |
| Native Aspect Ratio |
16:9 |
| Contrast Ratio |
16,000:1 |
| Lamp Type |
230 W UHE |
| Keystone Correction |
Vertical: -30 to +30 degrees
Horizontal: -30 to +30 degrees |
| OPTICAL |
|
| Zoom |
1 – 1.6 (Optical) |
| Screen Size (Standard Lens) |
30″ to 300″ |
| Projection Distance (Standard Lens) |
60″ screen 1.76 – 2.86 m |
| Throw Ratio |
1.32 (Zoom: Wide)
2.14 (Zoom: Tele) |
| Projection Lens F Number |
1.51 – 1.99 |
| Projection Lens Focal Length |
18.2 mm – 29.2 mm |
| Focus Method |
Manual |
| Offset |
10:0 |

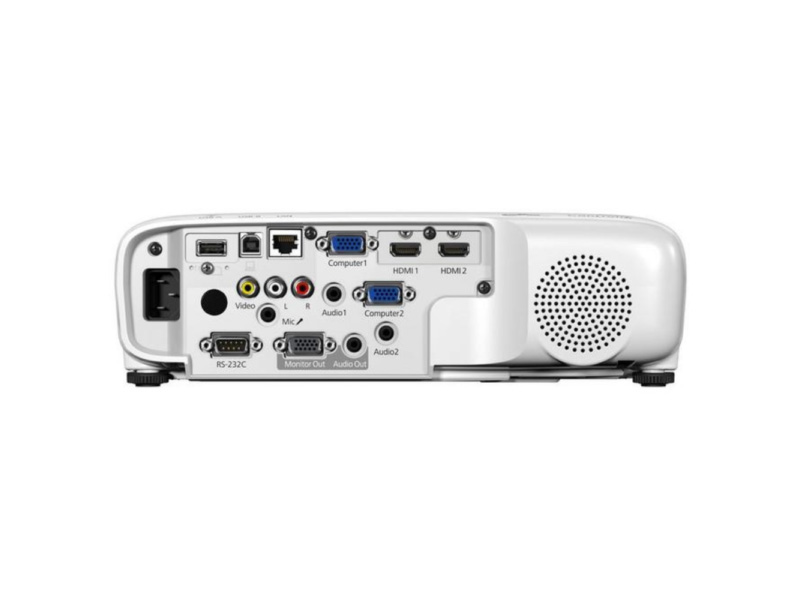

| CONNECTIVITY |
|
| Input: Video |
1 x RCA (Yellow) |
| Input: Computer |
2 x D-sub 15-Pin (RGB)
1 x USB 2.0 type B |
| Input: Digital |
2 x HDMI |
| Input: Audio |
2 x RCA (Red / White)
2 x Stereo mini |
| Control: I/O |
1 x RS232C |
| Network: I/O |
1 x RJ45
1 x USB 2.0 type A |
| Wireless Connectivity |
Included |
| Output: Video |
1 x D-sub 15 pin |
| Output: Audio |
1 x Stereo mini |
| ADVANCED FEATURES |
|
| Built-in Speaker |
16 W |
| Epson Projector Management (Network & Control) |
Yes |
| Epson iProjection (Multi-PC Projection) |
Yes |
| Wireless LAN Enterprise Security |
Yes |
| Miracast |
Yes |
| Split Screen |
Yes |
| Auto Keystone Correction |
Vertical: -30 to +30 degrees |
| Horizontal Slide Keystone Correction |
Yes |
| Instant Off |
Yes |
| Direct Power On |
Yes |
| Security |
Kensington – style lock provision |
| Colour Modes |
Dynamic, Presentation, Cinema, sRGB, Blackboard |
| GENERAL |
|
| Dimensions D x W x H (Including Feet) |
293 x 309 x 105 mm |
| Weight |
3.1 kg |
| Projector Warranty |
2 Years |
| Lamp Life (Normal/Eco) |
6,500 h / 17,000 h |
| Power Consumption: Lamp On |
327 W |
| Power Consumption: Standby |
2.0 W |
| Noise Level (Normal/Eco) |
37 / 28 dB |
